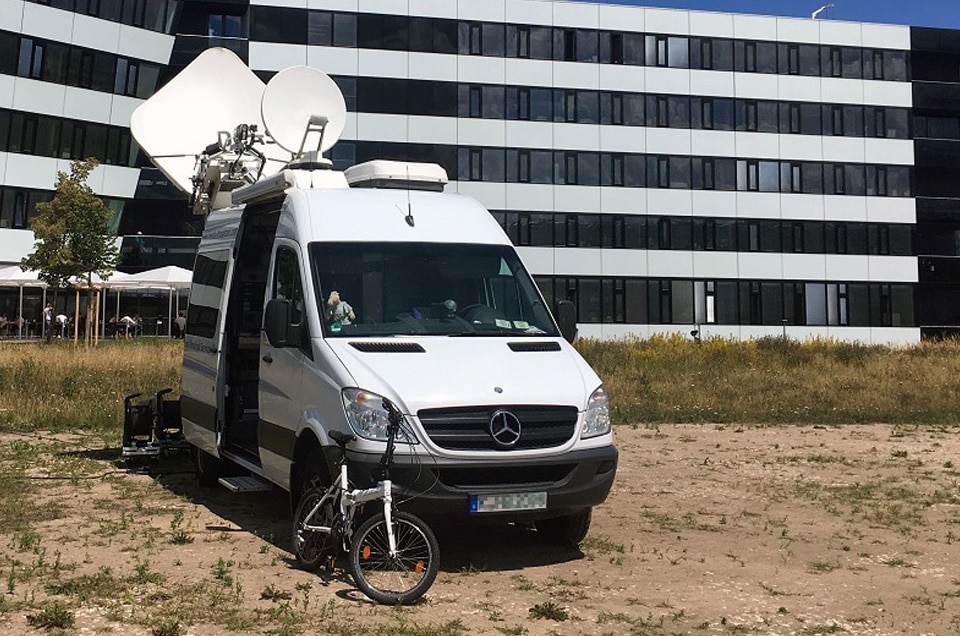

Digital Satellite News Gathering (DSNG) Transmission OB-van for TV, event broadcasting and live switching.
The best possible quality with the highest level of transmission security. DSNG HD transmission van is used for professional live broadcasting over satellite, live TV broadcasting, live switching and point-to-point links. The transmission meets the valid EBU standard, using the MPEG2/MPEG4 standard (DVB-S/DVB-S2).
The D-SNG satellite transmission broadcasts in KU band, having a broadcast licence with Astra, Eutelsat, Intelsat, Hotbird and many more. Thanks to this, there is an increasing number of possible transmission paths available, especially at critical locations. In Berlin, Leipzig, Hamburg, Cologne and Munich, we are the quickest, and we offer live broadcasting in Germany, Poland, the Czech Republic, Austria, Switzerland, Italy, France, Belgium, the Netherlands and Denmark. The satellite transmission van can also support large TV OB vans with live production as an uplink unit.
DSNG Broadcasting Van Use Examples
- Live switching / discussions and live broadcasting (concerts, sports, events, news, elections) in TV station studios / control rooms
- Point-to-point transmission for medical live broadcasting and live surgeries with a feedback audio channel
- HD live broadcasting of concerts and theatre performances to movie theatres
- Live broadcasting of religious services from churches and congregations over Astra or Eutelsat
- Live switching / live interviewing of speakers at conferences /press conferences and discussions
- Uplink / downlink for TV broadcasting vans
Broadcasting And Receiving Equipment
- Dual-path Ku band
- Broadcast system using redundancy
- Data transfer rate up to 25 Mbit for DVB-S, up to 60 Mbit for DVBS-2
- Resolution: HD/SD; Samplerate 4:2:0 or 4:2:2; BAndwidth 6,9, 12, 18, 24, 36 or 48 Mhz
- 4 tones (stereo) or 8 tones (mono)
- BISS (Basic Interoperability Scrambling System) encryption, BISS mode 1, BISS-E
- Optionally equipped with camera technology, image and sound mixing console, audio equipment, intercom system
Fahrzeugdaten
- Mercedes Sprinter
- L/B/H: 5,90m/2,00m/3,20m; Gew.: 5 t
- Spannung: 380V CEE 16 Ampere
- Stromerzeuger bis 10 KW
- alle senderelevanten Komponenten USV gesichert
